VH Series Blender
简介(Brief)：
l 主要用于制药、化工、食品等行业的混合。
Mainly applied by pharmacy, foodstuff and chemical industry.
l 适用于干颗粒、粉末物料的混合，适合中小批量生产。
Suitable to blend dry granules, powders materials; suit to large, medium or small scale production.

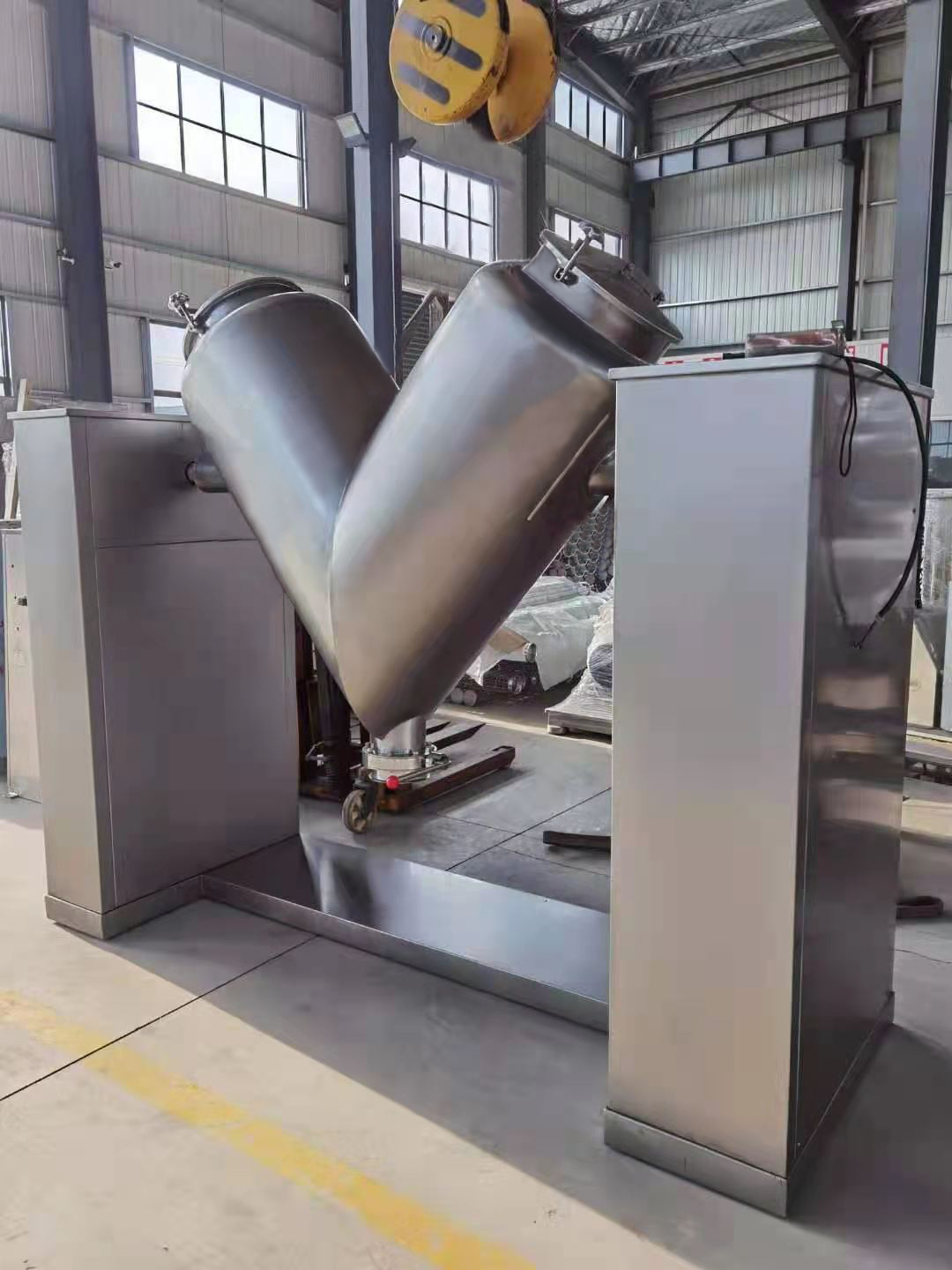

l 不锈钢制作，V型筒身360度旋转混合物料。
The machine is made with stainless steel. V type drum blends materials in continuous 360degree rotation.

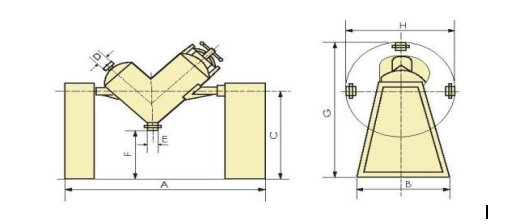

结构示意图（Schematic diagram）
技术参数(Technical Specifications)：
| 型号Model | VH-100 | VH-300 | VH-500 | VH-1000 | VH-2000 | VH-3000 |
|
筒体容积 Drum Volume |
100L | 300L | 500L | 1000L | 2000L | 3000L |
|
最大装料量 Max Load Weight |
50KG | 150KG | 250KG | 500KG | 1000KG | 1500KG |
|
筒体转速 Drum Speed |
12RPM | 12RPM | 0-12RPM | 0-10RPM | 0-10RPM | 0-8RPM |
|
电机功率 Motor Power |
1.1KW | 1.1KW | 2.2KW | 4KW | 7.5KW | 11KW |
|
外形尺寸 Overall Size |
1.6x0.5x1.5m | 1.9x0.65x18.5m | 2.5x0.8x2.05m | 2.8x1.2x2.2m | 3.6x1.9x3.0m | 3.8x2.2x3.3m |
